Amide-imide Overcoated Polyester-imide Copper Wire Feedback

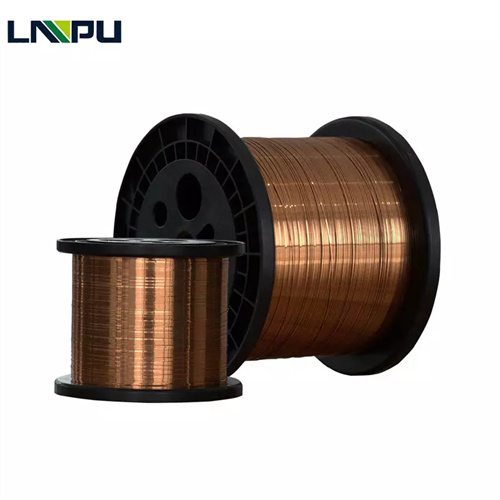

Recently, Zhengzhou LP Industry has exported a batch of enameled copper wires, which has received very satisfactory feedback from customers.

Our enamelled copper wires are in line with international standards, and as a supplier, we can provide customers with trustworthy test reports. All components meet the requirements, the wire must meet the entire standard requirements referenced by all components, the specification is IEC 60317-29/MW36C, the primer is polyester or polyesterimide, and the outer coating is polyamideimide. Parts should be UL certified, all products have been tested for heat resistance, electrical properties, etc., and all meet the requirements.

Our company is committed to providing customers with excellent products and achieving the goal of win-win cooperation.

RAW MATERIAL DRAWING:
AMIDE-IMIDE OVERCOATED POLYESTER-IMIDE COPPER WIRE

Type DAMID 200,Grade-2
Specification -IEC60317-29/MW36C
Base coat Polyester or Polyester-imide
Over coat Polyamide-imide
Rectangular Size of Conductor
(Bare)
-2.5±0.030mm(W))x0.80.030mm(T)
7.Minimum increase of insulation
0.12mm Min
BDV test 2.0KV Min.(tested in ball bath)
Softening temperature(C) >340°C
Elongation >30%
Adhesion Good
Break point(°C) 160-180 Cfor Polyester
>185C for Polyester-imide14
Lumps <11 small lumps per 100 meters and or
<7 big lumps per 100 meters.
HVC Detector setting Max 10 Faults for 30 meters
Application Critical high voltage transformer
for Medical application
Visual requirement Uniform insulation coating.
Minimum increase of insulation 0.12mm Min

PROPERTIES OF DAMID 200

Note:
The below mentioned properties to be tested for every batch & share the report.

Main characteristics Test method Acceptance criteria
Thermal properties
Heat shock 1EC60851-6.3 ≥220°C,6Xt
Electrical properties
Conductor resistance IEC60851-5.3 0.01724Ωmm2/m
Conductivity 1/R >58m/(Ωmm2)
Breakdown voltage IEC60851-5.4 2.0kV
Mechanical properties
Elongation IEC60851-3.3 ≥30%
Springback angle IEC60851-3.4 ≤5°
Flexibility
Bending edgewise IEC60851-3.5 4x width
Bending flatwise IEC60851-3.5 4 x thickness
Adherence
Cut and Stretch 1EC60851-3.5 15%stretch,Loss of
adhesion 1 x width
